X-rays are just like any other kind of electromagnetic radiation. They can be produced in parcels of energy called photons, just like light. There are two different atomic processes that can produce X-ray photons. One is called Bremsstrahlung and is a German term meaning "braking radiation." The other is called K-shell emission. They can both occur in the heavy atoms of tungsten. Tungsten is often the material chosen for the target or anode of the x-ray tube.

Both ways of making X-rays involve a change in the state of electrons. However, Bremsstrahlung is easier to understand using the classical idea that radiation is emitted when the velocity of the electron shot at the tungsten changes. The negatively charged electron slows down after swinging around the nucleus of a positively charged tungsten atom. This energy loss produces X-radiation. Electrons are scattered elastically and inelastically by the positively charged nucleus. The inelastically scattered electron loses energy, which appears as Bremsstrahlung. Elastically scattered electrons (which include backscattered electrons) are generally scattered through larger angles. In the interaction, many photons of different wavelengths are produced, but none of the photons have more energy than the electron had to begin with. After emitting the spectrum of X-ray radiation, the original electron is slowed down or stopped.

Bremsstrahlung Radiation

Like a marble hitting a billiard ball, accelerated elctrons get redirected after colliding with large atoms like tungsten. From this interaction, bremsstrahlung radiation is emitted. X-ray tubes produce x-ray photons by accelerating a stream of electrons to energies of several hundred kilovolts with velocities of several hundred kilometers per hour and colliding them into a heavy target material. The abrupt acceleration of the charged particles (electrons) produces Bremsstrahlung photons. X-ray radiation with a continuous spectrum of energies is produced with a range from a few keV to a maximum of the energy of the electron beam. Target materials for industrial tubes are typically tungsten, which means that the wave functions of the bound tungsten electrons are required. The inherent filtration of an X-ray tube must be computed, which is controlled by the amount that the electron penetrates into the surface of the target and by the type of vacuum window present.

The bremsstrahlung photons generated within the target material are attenuated as they pass through typically 50 microns of target material. The beam is further attenuated by the aluminum or beryllium vacuum window. The results are an elimination of the low energy photons, 1 keV through l5 keV, and a significant reduction in the portion of the spectrum from 15 keV through 50 keV. The spectrum from an x-ray tube is further modified by the filtration caused by the selection of filters used in the setup.

The applet below allows the user to visualize an electron accelerating and interacting with a heavy target material. The graph keeps a record of the bremsstrahlung photons numbers as a function of energy. After a few events, the "building up" of the graph may be accomplished by pressing the "automate" button.

Repeatedly click the "Emit Electron" button to see how electrons scatter. Click the "Automate" button to observe the statistical distribution of energies that are emitted from the scattered electrons.

K-shell Emission Radiation

Sometiems, an electron with collide with an atom's electron that was from an inner shell. When this happens, one electron will scatter and the other will get knocked out of its shell to interact with another atom. Remember that atoms have their electrons arranged in closed "shells" of different energies. The K-shell is the lowest energy state of an atom. An incoming electron can give a K-shell electron enough energy to knock it out of its energy state. About 0.1% of the electrons produce K-shell vacancies; most produce heat. Then, a tungsten electron of higher energy (from an outer shell) can fall into the K-shell. The energy lost by the falling electron shows up in an emitted x-ray photon. Meanwhile, higher energy electrons fall into the vacated energy state in the outer shell, and so on. K-shell emission produces higher-intensity x-rays than Bremsstrahlung, and the x-ray photon comes out at a single wavelength.

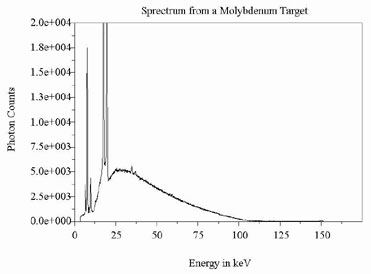

When outer-shell electrons drop into inner shells, they emit a quantized photon "characteristic" of the element. The energies of the characteristic X-rays produced are only very weakly dependent on the chemical structure in which the atom is bound, indicating that the non-bonding shells of atoms are the X-ray source. The resulting characteristic spectrum is superimposed on the continuum as shown in the graphs below. An atom remains ionized for a very short time (about 10-14 second) and thus an atom can be repeatedly ionized by the incident electrons which arrive about every 10-12 second.

Electrons that are knocked out of thier shells emitt very specific energies. Because of this, these collisions are easily distinguished in the energy statistics.
The sharp peaks in the curve are the numbers of events where an electron was removed from an atom's shells.
