Fracture Toughness

Fracture toughness is an indication of the amount of stress required to propagate a preexisting flaw. It is a very important material property since the occurrence of flaws is not completely avoidable in the processing, fabrication, or service of a material/component. Flaws may appear as cracks, voids, metallurgical inclusions, weld defects, design discontinuities, or some combination thereof. Since engineers can never be totally sure that a material is flaw free, it is common practice to assume that a flaw of some chosen size will be present in some number of components and use the linear elastic fracture mechanics (LEFM) approach to design critical components. This approach uses the flaw size and features, component geometry, loading conditions and the material property called fracture toughness to evaluate the ability of a component containing a flaw to resist catastrophic fracture.

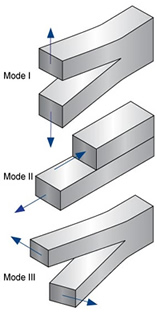

 There are three modes of fracture: mode 1 is opening/closing, mode 2 is in-plane shear, mode 3 is taring shear.A parameter called the critical stress-intensity factor (KC) is used to represent the fracture toughness of most materials. A Roman numeral subscript indicates the mode of fracture and the three modes of fracture are illustrated in the image to the right. Mode I fracture is the condition in which the crack plane is normal to the direction of largest tensile loading. This is the most commonly encountered mode and, therefore, for the remainder of the material we will consider KI

The stress intensity factor is a function of loading, crack size, and structural geometry. The stress intensity factor may be calculated by the following equation:

K I = σ β π a K_{I}=\sigma \beta \sqrt{\pi a }

Where: KI is the stress intensity factor in M P a / m \mathrm{MPa}/\sqrt{\mathrm{m}} or p s i / i n \mathrm{psi}/\sqrt{\mathrm{in}}
  σ is the applied stress in MPa or psi
  β
is a dimensionless correction factor depends on specimen geometry.
  a is the crack length in meters or inches

The fracture toughness KC of a material is defined as the critical stress intensity factor for immediate crack growth under given conditions. Under prescribed-load boundary conditions, such crack growth will be immediately catastrophic. Any flaw large enough (length a) that its stress intensity KI might reach KC under the loading σ may cause immediate failure.

In larger objects the applied load for catastrophic fracture may be significantly lower than expected from the the nominal ultmate strength of the material. As such, catastrophic fracture is often the limiting factor in engineering design. In addition, repeated stress intensities KI which do not reach KC can still cause slow crack growth due to fatigue.

Role of Material Thickness

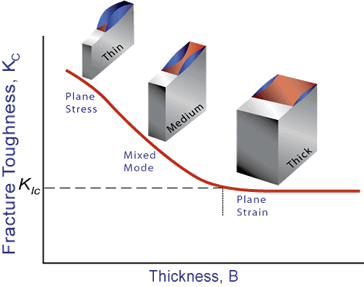

As the thickness of the specimen increases, fracture toughness decreases and the plain strain assumptions become more accurate.
Specimens having different thickness produce different values for KC. Thin specimens cannot have stress components normal to their free surfaces, whereas the inside of thicker specimens may be constrained by surrounding material and develop stress components in the thickness dimension. Such thin specimens have a higher value of KC because they have a much larger plastic zone area than thicker specimens, spreading the fracture energy over that larger area. The value of KC decreases with thickness until the the thickness exceeds some critical dimension. At this point the value of KI becomes relatively constant and this value, KIC, is a true material property which is called the plane-strain fracture toughness. KIC is usually measured by the process specified in ASTM Standard E399. The relationship between stress intensity, KI, and fracture toughness, KIC, is similar to the relationship between stress and tensile stress. The stress intensity, KI, represents the level of “stress” at the tip of the crack. The fracture toughness, KIC, is the highest value of stress intensity that a material under very specific (plane-strain) conditions can withstand without fracture. As the stress intensity factor reaches the KIC value, unstable fracture occurs. As with a material’s other mechanical properties, KIC is commonly reported in reference books and other sources.

Plane Strain - a condition of a body in which the displacements of all points in the body are parallel to a given plane, and the values of theses displacements do not depend on the distance perpendicular to the plane

Plane Stress – a condition of a body in which the state of stress is such that two of the principal stresses are always parallel to a given plane and are constant in the normal direction.

Plane-Strain and Plane-Stress

When a material with a crack is loaded in tension, the materials develop plastic strains as the yield stress is exceeded in the region near the crack tip. Material within the crack tip stress field, situated close to a free surface, can deform laterally (in the z-direction of the image) because there can be no stresses normal to the free surface. The state of stress tends to biaxial and the material fractures in a characteristic ductile manner, with a 45o shear lip being formed at each free surface. This condition is called “plane-stress" and it occurs in relatively thin bodies where the stress through the thickness cannot vary appreciably due to the thin section.

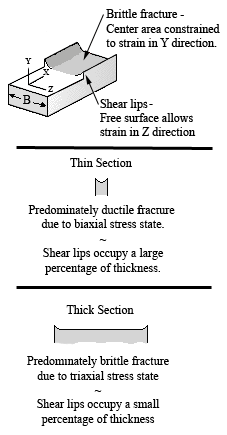

A thin object will experience a more ductile form fracture due to a large plastic zone with shear lips that occupy a large percentage of the thickness. For thick objects, the plastic zone in plane strain is much smaller and the shear lips occupy a much smaller portion of the thickness, giving more brittle fracture characteristics and lower KC.
However, material away from the free surfaces of a relatively thick component is not free to deform laterally as it is constrained by the surrounding material. The stress state under these conditions tends to triaxial and there is zero strain perpendicular to both the stress axis and the direction of crack propagation when a material is loaded in tension. This condition is called “plane-strain” and is found in thick plates. Under plane-strain conditions, materials behave essentially elastic until the fracture stress is reached and then rapid fracture occurs. Since little or no plastic deformation is noted, this mode of fracture is termed brittle fracture.

Fracture Energy Release Rate or Work of Fracture

The fracture energy release rate (or equivalently work of fracture) GC of a material is an alternate form sometimes used in place of the critical stress intensity factor KC. The relationship between GC and KC is

G C = K C 2 / E G_{C}=K_{C}^{2}/E^{*}

where E* is an equivalent modulus:

E = E E^{*}=E for plane stress;

E = E E^{*}=E for plane strain cases such as material properity GIC and KIC values.

Plane-Strain Fracture Toughness Testing


compact tension specimens experience mode 1 loading due to tensile loads directly on the specimen. SENB specimens experience mode 1 loading thorugh bending.When performing a fracture toughness test under ASTM E399, the most common test specimen configurations are the single edge notch bend (SENB or three-point bend), and the compact tension (CT) specimens. From the above discussion, it is clear that an accurate determination of the plane-strain fracture toughness requires a specimen whose thickness exceeds some critical thickness (B). Testing has shown that plane-strain conditions generally prevail when:

B 2.5 ( K I C σ y ) 2 B\geq2.5\left(\frac{K_{IC}}{\sigma_{y}}\right)^{2}

Where: B is the thickness, constrained to produce plane strain conditions for most of the crack
  KIC is the fracture toughness of the material
  σy is the yield stress of material

When a material of unknown fracture toughness is tested, a specimen of full material section thickness is tested or the specimen is sized based on a prediction of the fracture toughness. If the fracture toughness value resulting from the test does not satisfy the requirement of the above equation, the test must be repeated using a thicker specimen. In addition to this thickness calculation, test specifications have several other requirements that must be met (such as the size of the shear lips) before a test can be said to have resulted in a KIC value.

When a test fails to meet the thickness and other test requirement that are in place to insure plane-strain condition, the fracture toughness values produced is given the designation KC. Sometimes it is not possible to produce a specimen that meets the thickness requirement. For example when a relatively thin plate product with high toughness is being tested, it might not be possible to produce a thicker specimen with plain-strain conditions at the crack tip.

Plane-Stress and Transitional-Stress States

For cases where the plastic energy at the crack tip is not negligible, other fracture mechanics parameters, such as the J integral or R-curve, can be used to characterize a material. The toughness data produced by these other tests will be dependant on the thickness of the product tested and will not be a true material property. However, plane-strain conditions do not exist in all structural configurations and using KIC values in the design of relatively thin areas may result in excess conservatism and a weight or cost penalty. In cases where the actual stress state is plane-stress or, more generally, some intermediate- or transitional-stress state, it is more appropriate to use J integral or R-curve data, which account for slow, stable fracture (ductile tearing) rather than rapid (brittle) fracture.

Uses of Plane-Strain Fracture Toughness

KIC values are used to determine the critical crack length when a given stress is applied to a component.

σ c ( K I C Y π a ) \sigma_{c}\leq\left(\frac{K_{IC}}{Y\sqrt{\pi a}}\right)

Where: σc is the critical applied stress that will cause failure
  KIC is the plane-strain fracture toughness
  Y is a constant related to the sample's geometry
  a is the crack length for edge cracks
or one half crack length for internal crack

KIC values are used also used to calculate the critical stress value when a crack of a given length is found in a component.

The critical flaw size (length of a flaw that will grow catastrophically) is then: a c = 1 π ( K I C σ Y ) 2 a_{c}=\frac{1}{\pi}\left(\frac{K_{IC}}{\sigma Y}\right)^{2}

Where: ac is the length of the critical crack for edge cracks
or one half the length of the critical internal crack
  σ is the stress applied to the material
  KIC is the plane-strain fracture toughness
  Y is a constant related to the sample's geometry

Orientation

The fracture toughness of a material commonly varies with grain direction. Therefore, it is customary to specify specimen and crack orientations by an ordered pair of grain direction symbols. The first letter designates the grain direction normal to the crack plane. The second letter designates the grain direction parallel to the fracture plane. For flat sections of various products, e.g., plate, extrusions, forgings, etc., in which the three grain directions are designated (L) longitudinal, (T) transverse, and (S) short transverse, the six principal fracture path directions are: L-T, L-S, T-L, T-S, S-L and S-T.

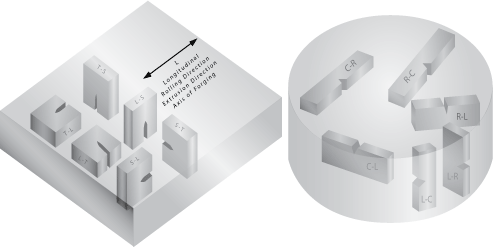

The fracture of a specimen is highly dependent on it's geometry and orientation.
