Ultrasonic Simulation - UTSIM

UTSIM is a user interface integrating a CAD model representing a part under inspection and an ultrasound beam model. The beam model can accurately predict fields for focused or planar beams, through curved or flat interfaces in a 3D space. Isotropic materials are required for the current implementation. Within UTSIM, the geometrical boundary conditions are automatically set up when the user points the virtual probe at the 3D solid model. It is fast enough to generate waveforms from flaws in real time.

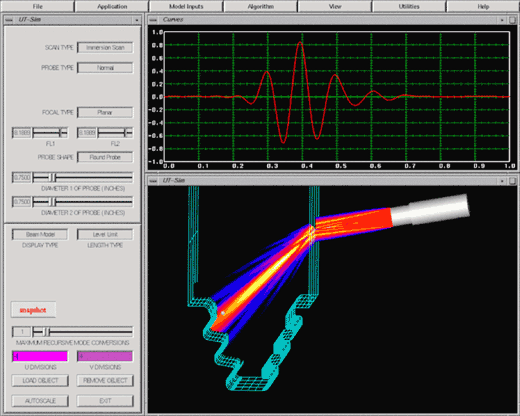

UTSIM can be used to simulate ultrasonic testing results in a material.
